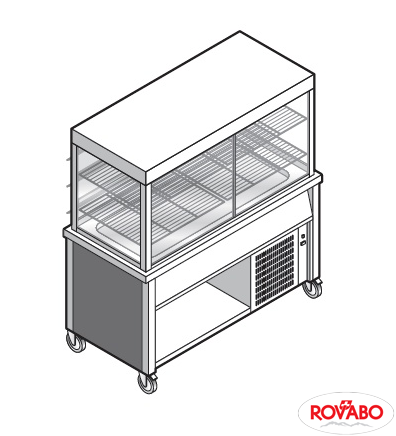

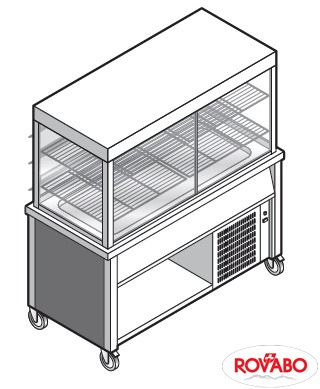

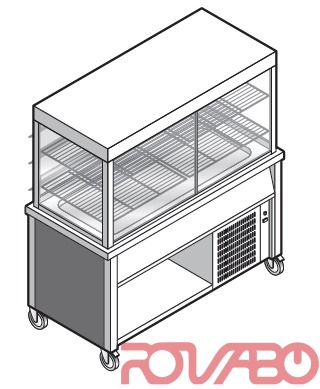

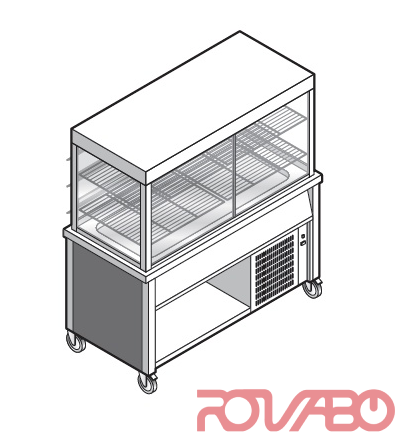

Refrigerated display case on static refrigerated top, open cupboard, 6 GN1/1, +4/+12°С
Model | HCVTRPG23 |
Power Type | Electrical |
Power | 1.6 / refrig. 1.4 kW |
Temperature | +4/+12ºС |
Capacity | 6 GN1/1 |
Dimensions | 2300x700x1620 mm |
Voltage | 230V 1F+N |
Top H = 50 mm made of stainless steel AISI 304, th. 12/10 with rounded edges. Top 1930x510x20 mm with pressed inset for an easy cleaning. Contact cooling refrigeration through contact coils under the top. Insulation by high density expanded polyurethane without C.F.C. and H.C.F.C. Display case 2282x642x700 mm with 2 grid shelves, refrigerated through ventilated evaporator fixed in the ceiling. Display case with 3+3+3 polycarbonate flap doors on customer side, 3 sliding doors on operator side. Refrigerated cabinet with 3 hinged doors complete with GN 1/1 guides. With condensing unit. Condensed water drain on bottom. Independently managed temperature and defrost of the top and the cabinet by digital programmable thermostats. Automatic defrosting. R290 refrigerant. Cooling power at -15°C: 1.6 / 1.5 (refrig.) kW. Depth w/tray slide: 1000 mm. Open/ refrigerated (+2/+10°C) cupboard 1350x590x420 (334 lt.)/ 1255x540x350 (237 lt.) mm. Display case lighting.
