Thermal equipment

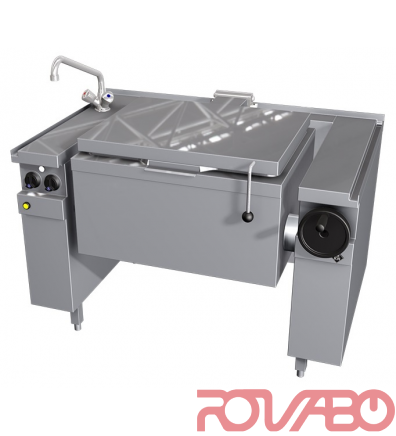

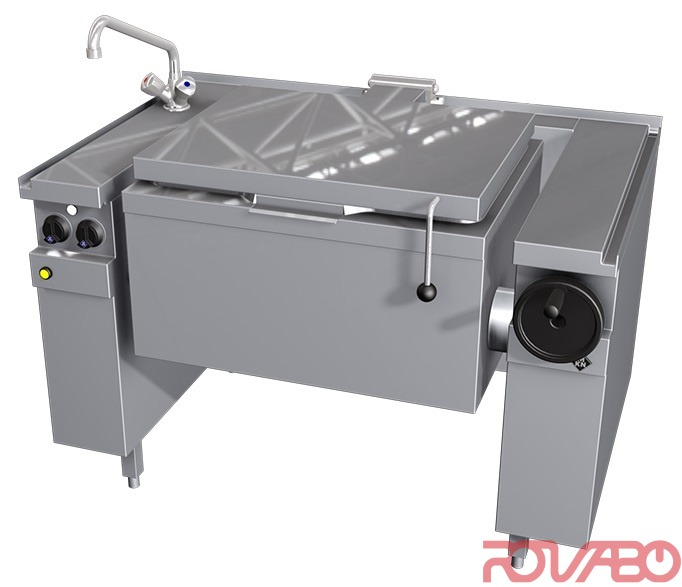

Electric tilting bratt pan 2/1 GN manual tilting, 80 l
Model MKN_10019138
Power Type Electrical
Power 10.8 kW
Capacity 80/65 l
Dimensions 1300x850x850 mm
Weight 222 kg
Voltage 400 V/3/50 Hz
Producer MKN Maschinenfabrik Kurt Neubauer GmbH & Co.
Tilting frying pan 700x540 mm, 210 mm deep made completely of extremely corrosion-resistant chrome nickel steel (1.4404) (AISI 316) with smoothly polished special sandwich material (MKN PowerBlock). 55 mm gap between pan and side columns – for easy cleaning. Ideal pan positioning prevents spills and guarantees that the pan is fully emptied. SUPRA contact heating elements for optimal heat distribution and short heating up times. Greater heating capacity ensures even heat distribution and minimal temperature fluctuation when loading with cold food. Thermostatic regulation for two separate heating zones. Double walled hinged lid and mixer tap as standard. Main switch, end switch, thermostat, safety temperature thermostat, control lamps, relay, mains connection, IpX5. Equipped as standard with interface for connection to an energy optimization system according to DIN 18875 and potential free contact. Accessories: 1 Mixer tap with outlet R¾". Optional accessories: 1 pan scraper, 1 Scoop, unperforated, 1 Scoop, perforated, appliance foot, 200 mm high, pluggable +/– 15 mm height adjustable (4 feet).
