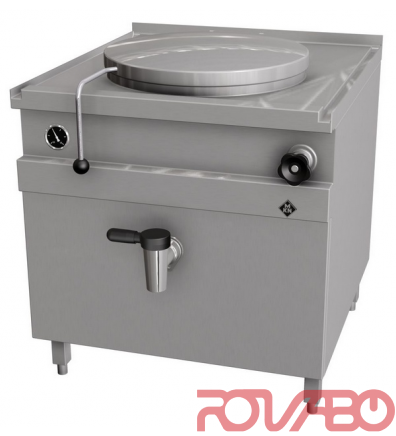

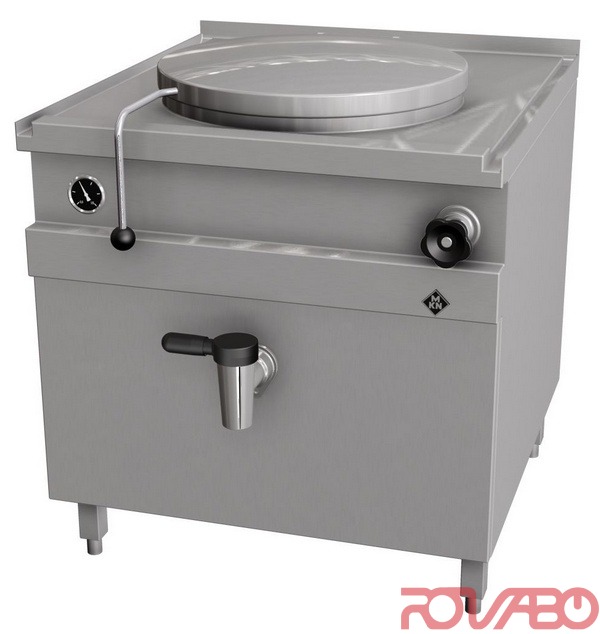

Steam boiling kettle 60 l, 17 min heatup
| Model | MKN_10018566 |
| Power Type | Electrical |
| Power | 23 kW |
| Capacity | 70/60 l |
| Dimensions | 800x850x850 mm |
| Weight | 110 kg |
| Voltage | 230 V/1/50 Hz |
| Producer | MKN Maschinenfabrik Kurt Neubauer GmbH & Co. |
Inner kettle Ø500 mm, 378 mm deep made completely of extremely corrosion-resistant chrome nickel steel (1.4404) (AISI 316). Heat up time 17 min. Regulation via manual steam valve (Type of protection: IPX6). Double-walled hinged lid and mixer tap as standard. Emptying via safety drain cook at the front. Fittings Steam valve DN 25, air valve, safety valve. For steam generator installation on site. Nominal thermal load: 23 kW (37 kg/h), steam pressure connection 0.5-0.8 bar. Heat emission sensitive: 0.8 kW, latent: 4.6 kW. Accessories: extra large drain cock 1½" made of chrome nickel steel, 1 drain filter, 1 Mixer tap with outlet R¾" (DN 20). Optional accessories: 2 Chrome nickel steel cooking inserts, perforation Ø10 mm, 1 pair of lifting hooks, 1 Measuring rod, appliance foot, 200 mm high, pluggable +/– 15 mm height adjustable (4 feet).
