Thermal equipment

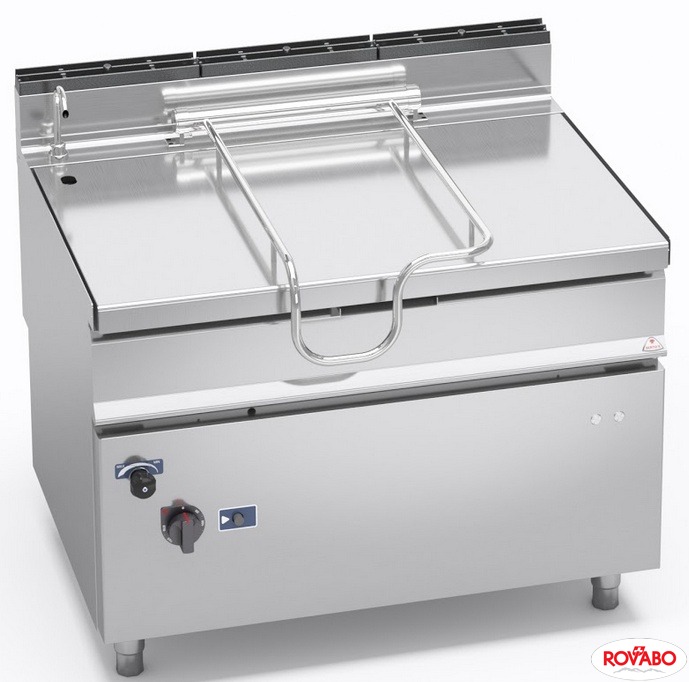

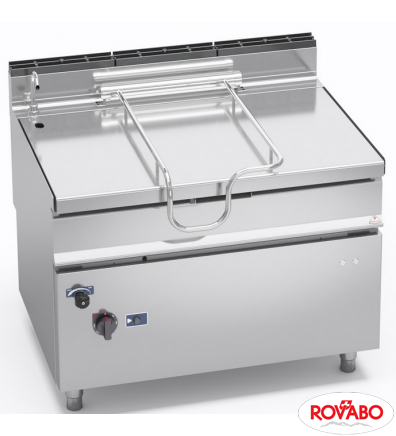

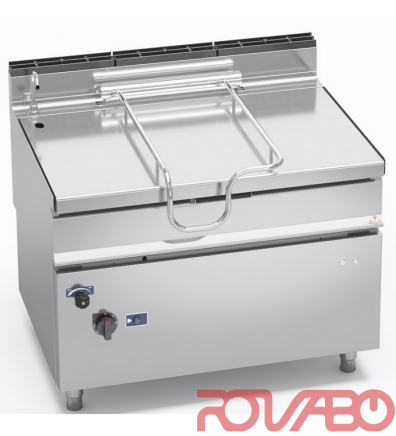

Gas tilting bratt pan, 120 l
Model G9BR12/I+RM
Power Type Gas
Power 30+0.04 kW
Temperature 100-300°C
Capacity 120 l
Dimensions 1200x900x900 mm
Weight 236 kg
Internal and external frame completely made of stainless steel, external sides with Scotch Brite finishing. Cover fixed on a self-balanced hinge from AISI 304 stainless steel with a very thick handle from AISI 304 stainless steel. Cooking tank with AISI 304 stainless steel walls with 20/10 thickness, non-stick ceramic micro-sphere finishing and completely rounded angles. 25.795 kcal/h. Radiating steel tank bottom with 10 mm thickness; externally welded. Distributing tap with large capacity neck placed on the top. Even heating at the bottom with stainless steel multi-flame burners, with thermocouple safety valve and protected pilot flame. Piezoelectric ignition with rubber protection. Control with a large precision thermostatic valve with temperature regulation from 100 to 300°C.
