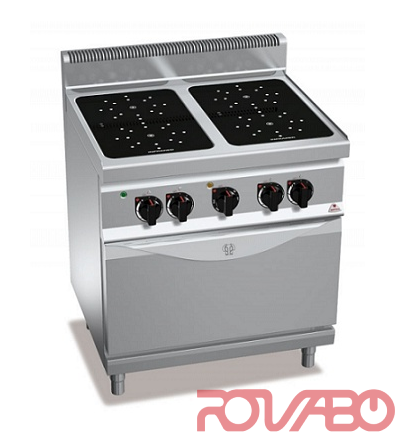

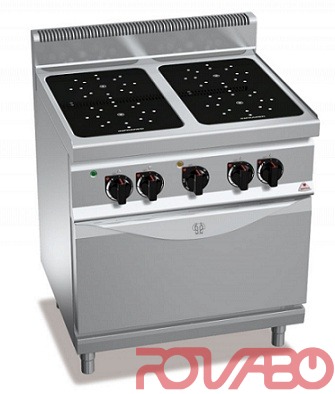

Infrared stove, 4x3,2 kW + 3 kW GN2/1
| Model | E7P4/VTR+FE |
| Power Type | Electrical |
| Power | 20.3 kW |
| Capacity | GN2/1 4x530x650 mm |
| Dimensions | 800x714x900 mm |
| Weight | 100 kg |
| Voltage | 400 V/3/50 Hz |
Worktop and front panels made of AISI 304 stainless steel. Pyroceram top with 6 mm thickness. Electrical resistances able to reach a high temperature (500° C) heating the cooking top by irradiation. The zones are marked by proper serigraphy that allow the proper positioning of the pans. After switching off each zone, a light signals residual heat up to 60° C to safe-guard the operator. Electric static oven made completely of STAINLESS STEEL with 4 levels for 2/1 GN grids/pans. Grill with salamander function on the upper side and a thermostat for correct temperature regulation from 50° to 270° C. Pilot light and temperature indicator light. Pressed door and counter door made of AISI 304 stainless steel of 20/10 thickness. High resistance door handle of AISI 304 steel of 20/10 thickness. Adjustable feet. Standard: no. 1 anti-tilting oven grid.
