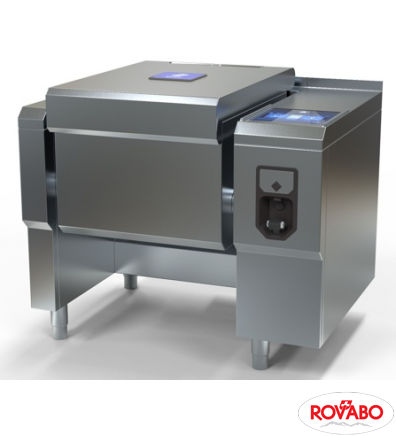

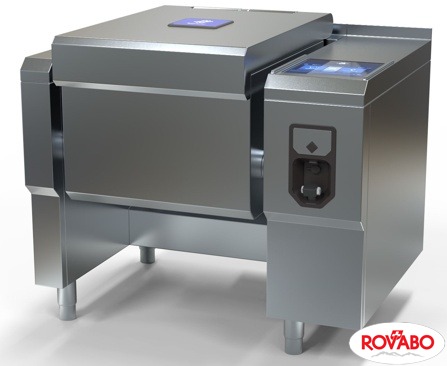

Electric tilting pressure bratt pan, 50 l
Model MKN_FLEXICHEF1/50
Power Type Electrical
Power 14.7 kW
Capacity 50 l
Dimensions 1100х850х750 mm
Weight 290 kg
Voltage 400 V/3/50 Hz
Producer MKN Maschinenfabrik Kurt Neubauer GmbH & Co.
FlexiChef is a multifunctional fully flexible tilting pan in 5 sizes for high speed cooking. FlexiChef makes everything possible: cooking, Sous Vide cooking, frying, deep frying or pressure cooking. The only horizontal cooking appliance equipped with an automatic cleaning system SpaceClean (in 2 min only! compared to conventional MKN equipment). Descaling (with SpaceClean) – extended application of FlexiChef. Automatic cooking (AutoChef) in 10 cooking categories, from meat to perfection (regeneration); manual cooking with 9 cooking programmes. ChefsHelp - Step by step instructions for perfect results. Thanks to ReadyXpress - high speed cooking it is 3 times faster than conventional cooking and twice as fast as conventional pressure cooking equipment! Turbo PowerBlock - pan bottoms with intelligent heating system (energy saving and efficient). FlexiZone: a complete dish in only 1 skillet pan divided in up to 3 zones with individually controlled temperature and time - this saves space, time and energy. MaxPower and FlexPower variants available: 14.7 & 13.1 kW. Automatic filling, automatic emptying, automatic portioning (patent). Front panel with USB 2.0 port (Transfer of HACCP data and cooking programmes). Integrated Ethernet interface. Connection to Connected Kitchen (option). Socket (option). Integrated hand shower. Electronic multipoint core temperature probe. External sous vide core temperature sensor (option). Fully prepared connection for an energy optimization system (option). Emergency stop switch. Appliance fully prepared for easy connection to electricity and water/waste water (provided by customer). Integrated siphon. Motorised drain valve flush mounted in the bottom of the skillet pan. Electric motor controlled lid. Size 1 (50 L). Operating panel (simple operation with MagicPilot OS - 10 inch display, as your smartphone) on the left or on the right (option). Favourites & Quick Start - immediate access to your favourite functions from start screen. ServiceApp; Potential free contact; Fire detection interface; External signal interface (option). All pan sizes can be indivually combined with the control panel in the middle (FlexiChef Team). Pan dimensions: 523x543x225 mm; Oil capacity max.: 25 L. Cold/hot (max. 60°C) water (drinking water): Flow rate min. 13 l/min, pressure 2-6 bar, Carbonate hardness: < 4,5 mmol/l, dimensions 3/4" AG, DN 20. Drain water connection: DN 50, flow rate 50 l/min (fixed connection) and 70 l/min (floor drain). Optional connection to MKN OPTIMA 850 possible; additional space not required.
