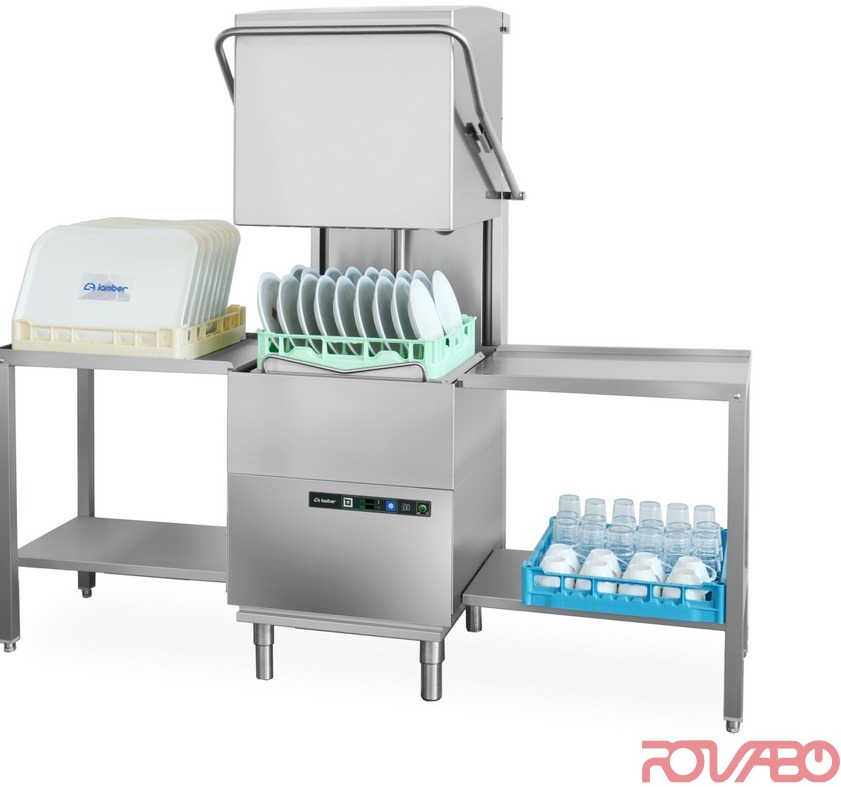

Pass-through dishwasher, 400/3/N/50 9kW-NO RINSE AID PUMP
| Model | DSP5-EK9 |
| Power Type | Electrical |
| Power | 9 kW |
| Temperature | 50÷55°C |
| Capacity | 39 / 5 l |
| Dimensions | 600x755x1450h mm |
| Weight | 100 kg |
| Water Inlet | 3/4" G |
| Water Outlet | 32 mm ÷ 1"1/4 G |
| Voltage | 400/3/N 50Hz |
| Producer | Lamber |
Stainless steel construction 18/10 AISI 304. Corner and Linear version. Washing capacity, 500x500 mm baskets/h: 30-20-15. Wash cycle: 120-180-240 sec. Plates per baskets: 12÷18. Work height: 870 mm. Clearance: 415 mm. Soft-touch electronic control panel with washing and rinsing temperature display. Stainless steel wash and rinse arms. Rotating lower and upper washing and rinsing. Automatic tank (39 l) loading, tank self-washing. 5 l boiler. Pump delivery: 260 l/min. Cycle/ hour water consumption: 2.40 / 72 l. Water pressure / hardness: 2÷4 bar / 5÷10°f. Thermocontrol (device wich guarantees the selected temperature for every rinsing cycle). Cycle start with soft-start system. Door opening safety device. High temperature rinsing. Top lifting handle. Constante rinse boiler system (RCB). Extractible control panel. Easy maintenance. Issue: 1 basket for 12÷18 dishes in plastic, 1 general basket in plastic, 1 cutlery container in plastic.
