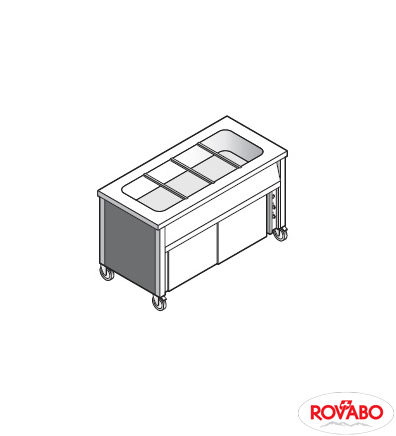

Water bain-marie on heated cupboard with sliding doors h 200 mm, +65/+90ºС, 4 GN1/1
| Model | ECB15 |
| Power Type | Electrical |
| Power | 5.2 kW |
| Temperature | +65/+90ºС |
| Capacity | 4xGN1/1 |
| Dimensions | 1500x700x900 mm |
| Weight | 122 kg |
| Water Inlet | 1/2’’ |
| Water Outlet | 1/2’’ |
| Voltage | 400 V/3/50 Hz |
Made from stainless steel 18/10. Top H = 50 mm made of stainless steel AISI 304, th. 12/10 with rounded edges. Welded and rounded tank for an easy cleaning, complete with GN containers separators. Tank suitable for GN containers max. H = 200 mm. Armoured heating elements for a better reliability. Water inlet by manual valve (by solenoid solenoid valve for models 5 and 6 GN). Removable overflow drain. Independent temperature adjustment of the cabinet and the tank by digital programmable controls. Dry heated cabinet with digital and safety thermostat. 2 sliding doors. 1220x590x400 mm cupboard (287 l), 1280x510x210 mm well.
