Electromechanics

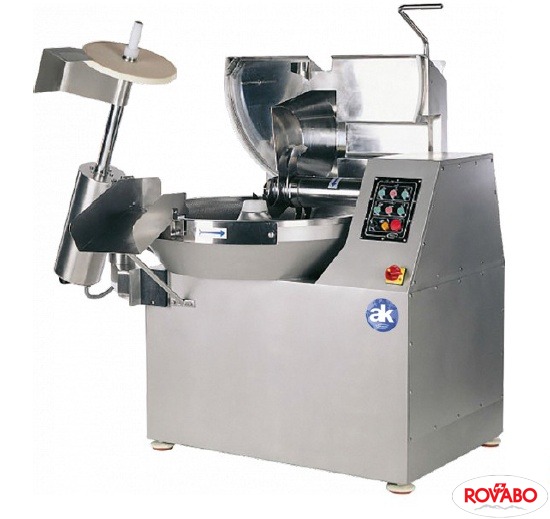

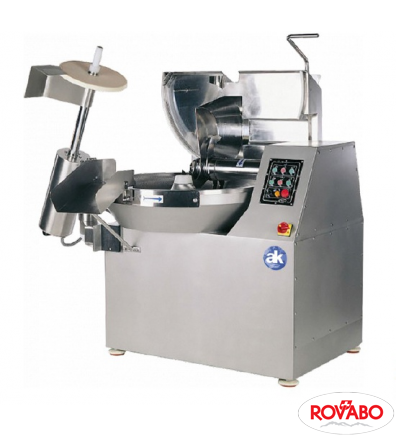

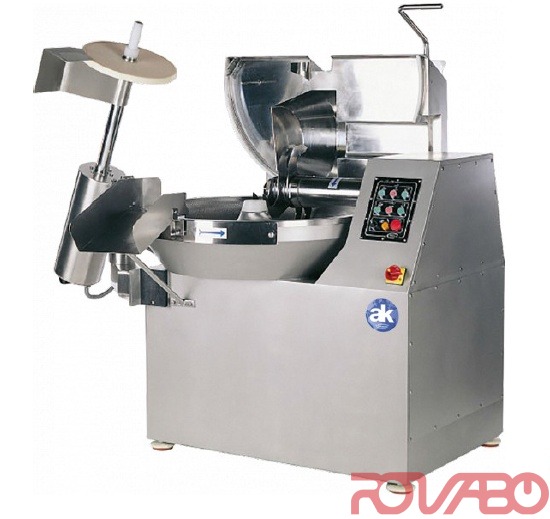

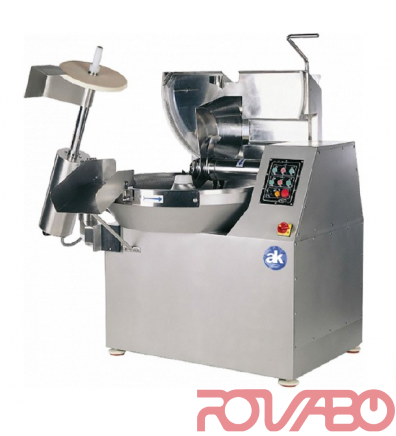

Cutter, 1 500-3 000 rpm, 75 l/ 50 kg
Model AS-75
Power Type Electrical
Power 16.19+1.10 kW
Capacity 75 l
Dimensions 1250x1240x1120 mm
Weight 865 kg
Voltage 400 V/3/50 Hz
Send Inquiry
Totally manufactured totally in AISI 304 stainless steel. AISI 304 stainless steel casting bowl. Very robust construction to prevent vibrations. Equipped with safety brake on the knives. Equipped with 2 independent motors. Equipped with 3 knives (optional 6 knives). Bowl cleaning switch. Digital thermometer included. Knive speed: 1.500 rpm/ 3.000 rpm. Bowl speed: 12 rpm/24 rpm. Options: extra 3-knives head, extra 6-knives head, equipped with 6 knives instead of 3, unloader – discharger.
Accessories
6054_1776935885-253bab3233420361acf576106c1db8cd.jpg Unloader-Discharger for AS-75, AS-75 VAR bowl cutters
6054
6053_1776935885-f680a239e57bd162c85be966f78142cb.jpg Three phase motor 230V/3ph/50Hz for AS-75 bowl cutter
6053
6052_1776935885-885dcec94e6750d5c6b3543d3b1d968c.jpg Extra head with 3 knives for AS-75, AS-75 VAR bowl cutters
6052
6051_1776935885-58a597442342fc6062043ba5e574c994.jpg Extra head with 6 knives for AS-75, AS-75 VAR bowl cutters
6051
6050_1776935884-3ad4c80e76e894654b141693f8bfaff9.jpg 6 knives installed instead of 3 for AS-75, AS-75 VAR bowl cutters
6050
