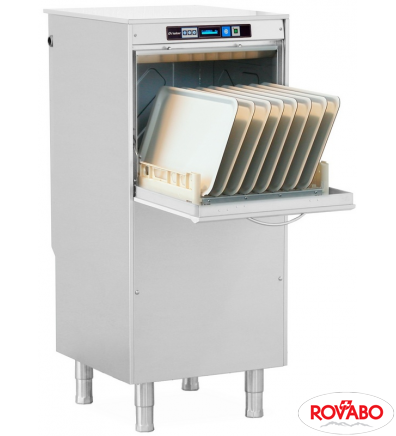

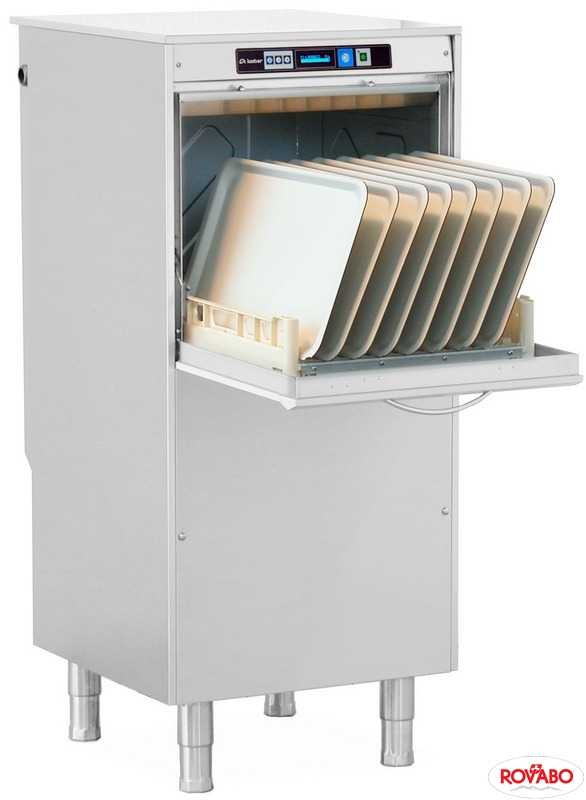

Frontal dishwasher, 30/20/15 60/30/20 baskets/h, 34/5 L
Model | 01F-DY |
Power Type | Electrical |
Power | 6.65 kW |
Dimensions | 600x650x1370 mm |
Weight | 90 kg |
Water Inlet | ¾” |
Water Outlet | 32 mm – 1“¼ |
Voltage | 400V/3/50Hz |
Producer | Lamber Srl |
Stainless steel construction 18/10 AISI 304. Insulated double skin. Rotating lower and upper wash and rinse in stainless steel. New extractable soft-touch electronic control panel with interactive graphic display. Wash and rinse temperature electronic display. Washing capacity: 540/360/270 1080/540/360 dishes/h; 30/20/15 60/30/20 baskets/h. Wash cycle: 2÷3÷4 1÷2÷3 min. endless cycle. Baskets 500x500 mm. 12÷18 plates per basket. Work height - 850 mm, clearance - 410 mm. Tank/ boiler capacity: 34/ 5 ltr. Complete programming of all the washing parameters. Cycle counter. Service maintenance function. Constante rinse boiler system (RCB). Water connection: 45÷55°C. Rinse water: 80÷90°C. Pump delivery: 300 l./min. Rinse-aid dispenser. Economy thermostat. Cycle/ hour water consumption: 2.60/ 52 L. Water pressure/ hardness: 2÷4 bar/ 5÷10°F. Drawn tank with self-cleaning bottom. Thermocontrol (device which guarantees the selected temperature for every rinsing cycle even in case of non-stop work). Cycle start with soft-start system. Self-washing slanted tank with rounded edges. Integral tank drawer filters. Automatic tank loading. Door opening safety device. Accessories: 2 baskets for 12÷18 dishes in plastic, 1 general basket in plastic, 2 cutlery containers in plastic. Options: double guide to wash cups and saucers simultaneously; timed dispenser for liquid detergent; tank drain unit with filter; booster pump.
