Dishwashers, laundry

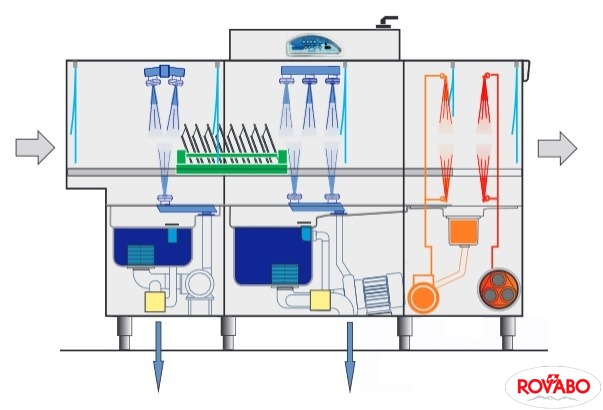

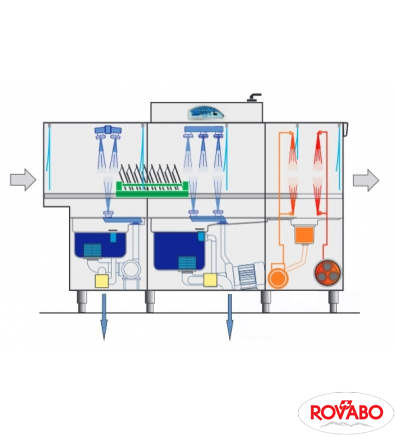

Body and tank in stainless steel construction 18/10 AISI 304. Tank capacity: 61 l . Boiler capacity: 29 l. Rinse: 360 Lt/h. Two automatic speeds: 1st - 2,08 mt/m', 2nd - 2,50 mt/m'. Hour capacity: 4500/5400 dishes/h. Baskets per hour: 250/300. Max dimensions for wash: 420 mm height - 500 mm width. Basket dimensions: 500x500 mm. Wash arms in Pre-wash: 2 upper + 1 lower, in Wash - 3 upper + 2 lower; rinse arms in Ecorinse (additional rinse, for reduction in consumption of water, energy, detergent): 1 upper + 1 lower, in Rinse - 1 upper + 1 lower. Completely automatic. Upper and lower fixed pre-washing (40°C), washing (60°C) and rinsing (85-90°C) arms in stainless steel, easy disassembly and interchangeable. Double skin with thermic and acoustic insulation. Drawing washing tanks with rounded edges; guarantee the highest hygiene. Self-draining inclined washing pumps. The drain valve allows to automatically empty the tanks. WRS system: recovery rinse water in Pre-washing. Counterbalanced door. New electronic control panel with two separate displays to make using your dishwasher easier and more immediate! The new touch facilitating programming control interactive display is dedicated to temperature management only! There are three different types of management: for the operator, for the maintenance technician and factory data. Front panel composition: low tension keyboard drives, touch control display indicates the temperatures of different tanks, PCB-board programming according to the type of machine and to the customer’s demand, alerts and functions showed on a display, warning light indicating “door open”or absence of overflow (when present), limit switch alarm, water-fail alarm (tank loading), fluxmeter alarm (when present), thermic relays alarm motors, signaling of various functions and cycles starting, rinse boiler filling at daily starting, speed selection push button or machine running with motor drive off, drying push button and light (when present), pre-rinse push button and light (when present), autotimer push button and light (when present), rinse light, fluxmeter light (when present), basket entry light (when present), washing tank water level light, heath pump light. The “SERVICE” function allows to program the maintenance interventions, autotimer allows to reduce water and energy consumption, frontal maintenance, water protection (PM), automatic tank loading, thermostats for automatic control temperatures of the wash- and rinse water, rinse economizer, tank and pump filters, insulated Boiler. SAFETY: feet adjustable and strong, pressure-switch protection for Heating elements, thermic protection for washing pump, automatic stopping of pull-through in case of foreign bodies, low voltage control circuit (24V) for greater safety during work operation, dishes (Stop with End Micro-switch on the exit table), door opening safety device. Accessories: 4 baskets. Options: water protection (standard and with aspirator), drying tunnel, steam condenser, heath pump, automatic start, rinsing flowmeter, entry-exit table, automatic basket-unload table, pressure pump, washing economizer. Cold water connection upon request.
