Dishwashers, laundry

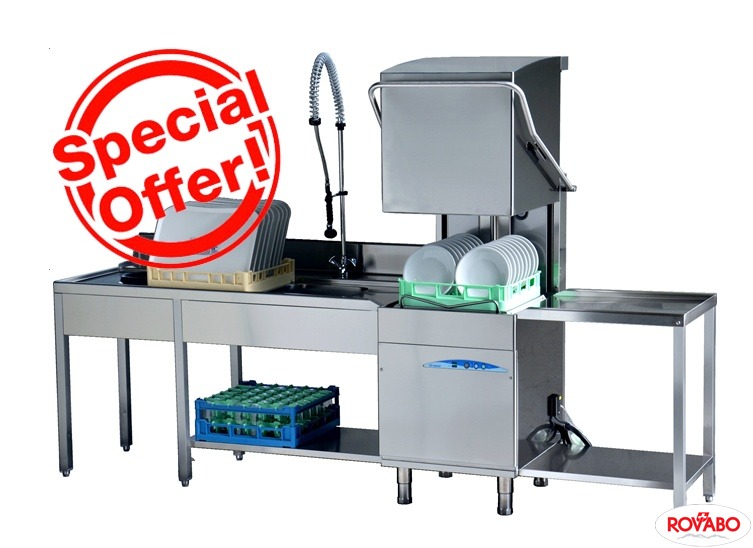

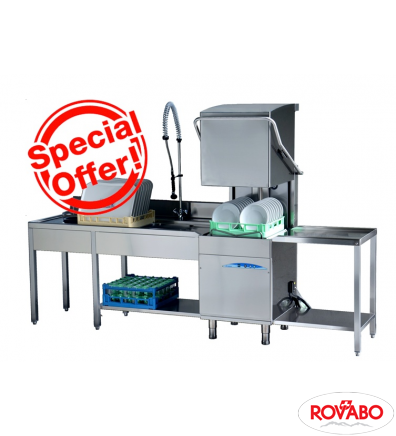

Stainless steel construction 18/10 AISI 304. Interactive control panel with LED RGB. The new luminous interactive control panel with LED RGB makes the use of the dishwasher easier. The different colours of the cycle pushbutton indicate in which phase of the cycle your dishwasher is. Red colour: live machine (stand-by). Yellow colour: heating or filling phase. Green colour: machine ready; it’s enough to press the button to start the washing cycle. Blue colour: washing phase. Digital thermometers. Straight or corner version. Drawn tank with self-cleaning bottom and double skin. Stainless steel wash and rinse arms. Hood lifting handle. Rotating lower and upper washing. Rotating lower and upper rinsing. Integral tank drawer filters. Automatic cycle start at hood closing. Automatic tank loading. Hood lifting safety device. Washing capacity: baskets/h 30/20/15, 60/30/20; dishes/h 540/360/270(600), 1080/540/360(1200). Dishes per 500x500 mm basket: 12-18 (20) Nr. Wash cycle: 2÷3÷4, 1÷2÷3 min. Capacity: 2 kW tank - 34 l, 9 kW boiler - 5 l. Work height 870 mm. Dish clearance: 415 mm. Electric pump 0.65 kW. Water connections: 45÷55°C. Pump delivery 300 l/min. Cycle/ hour water consumption: 2.60 / 58-89-117 l. Water pressure 2 ÷ 4 bar, hardness 5÷10°F. Rinsing water temperature 80÷90°C. Issue: 2 baskets for dishes - 1 general basket - 1 basket for 20 dishes in white rilsan steel - 2 cutlery containers. Accessories: timed dispenser for liquid detergent with double adjustment, tank drain unit with filter, incorporated booster pump, entry or exit side table with lower shelf 700 mm.
