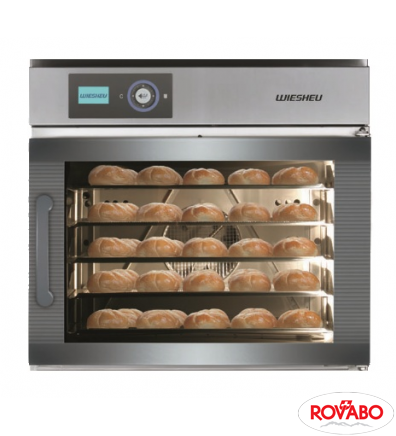

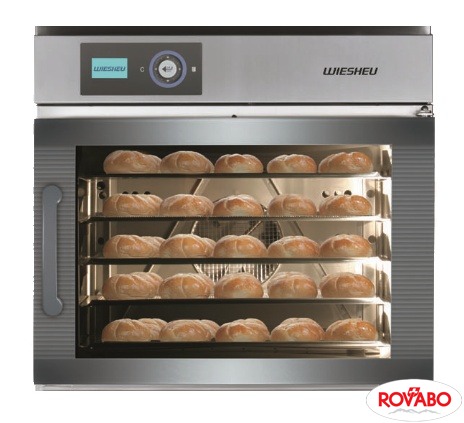

Convection oven, 5 x 600x400 h80 mm
Power Type Electrical
Power 7.8 kW
Temperature 30/+250°C
Capacity 5 x 600x400 h80 mm
Dimensions 760x771x745 mm
Weight 89.5/91 kg
Voltage 400 V/3/50 Hz
Producer WIESHEU GmbH
The oven that hardly needs any space. The smallest in-store baking oven is characterised by needing a minimal amount of space to provide maximum performance. Two control unit variants, integrated steam injection and the door locking option mean that you can use the Minimat in a very flexible way. The optional water tank makes it possible to use it on a mobile basis too. Easy to operate. Standard equipment: control unit manual, pipe steam injection, clockwise/anti-clockwise rotating fan, indirect lighting with halogen bulbs, 5 trays. Water Pressure 150-250 kPa. Capacity of baking product per tray (e.g. slit rolls): 15 with fresh dough, 18 with pre-baked dough pieces. Combination options: with all Minimat 64 in-store baking ovens, steam reducer with fully-automatically controlled steam condenser, stand with pedestal, stainless steel prover with doors, on castors, storage rack. Options: control unit Classic with program selection, water tank with tank display, additional fan speed, right/left door hinge, safety door locking for set-up in the customer area, door opens automatically once program finishes, modular construction: capacity expansion possible at any time. Add-ons: steam reducer, underframe, storage compartment, prover.
